SBW 300KVA high-power compensation type

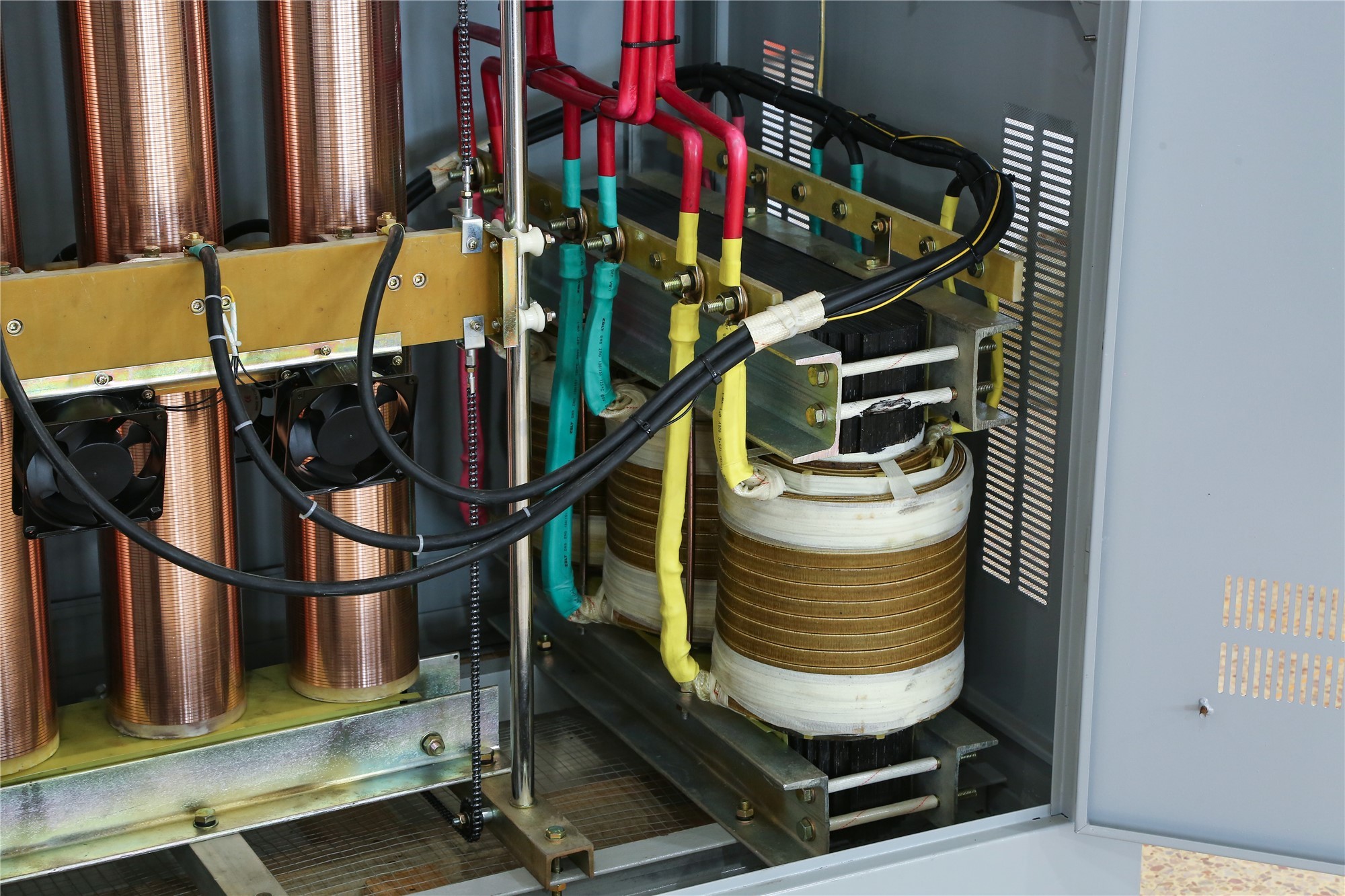

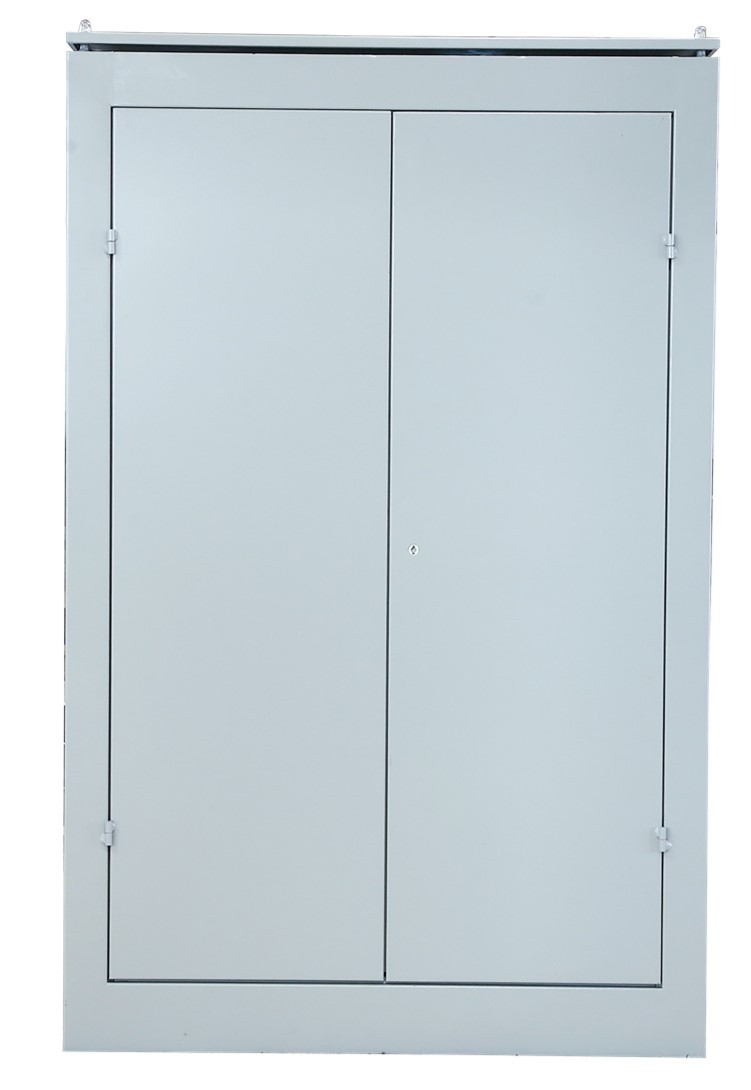

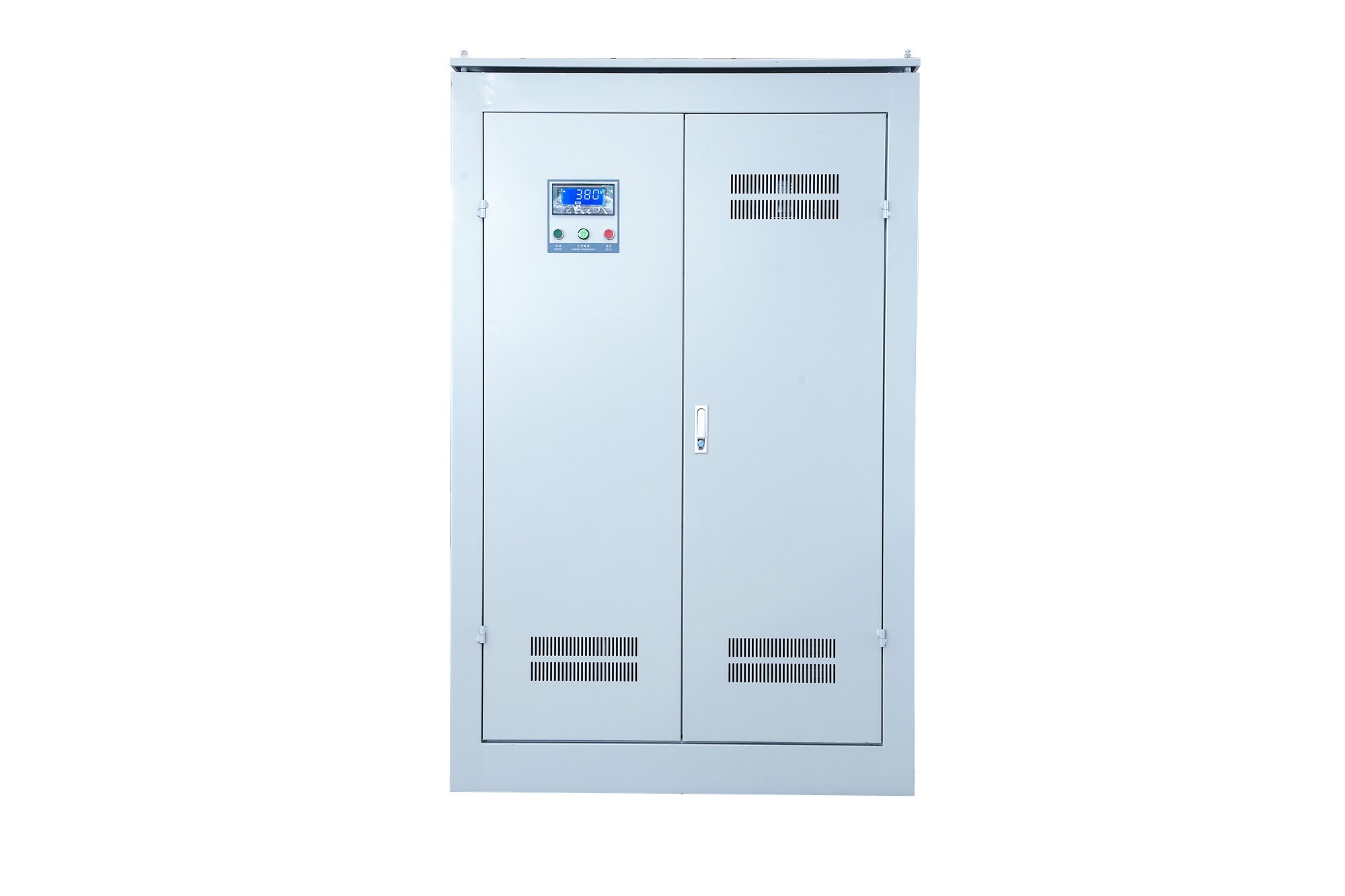

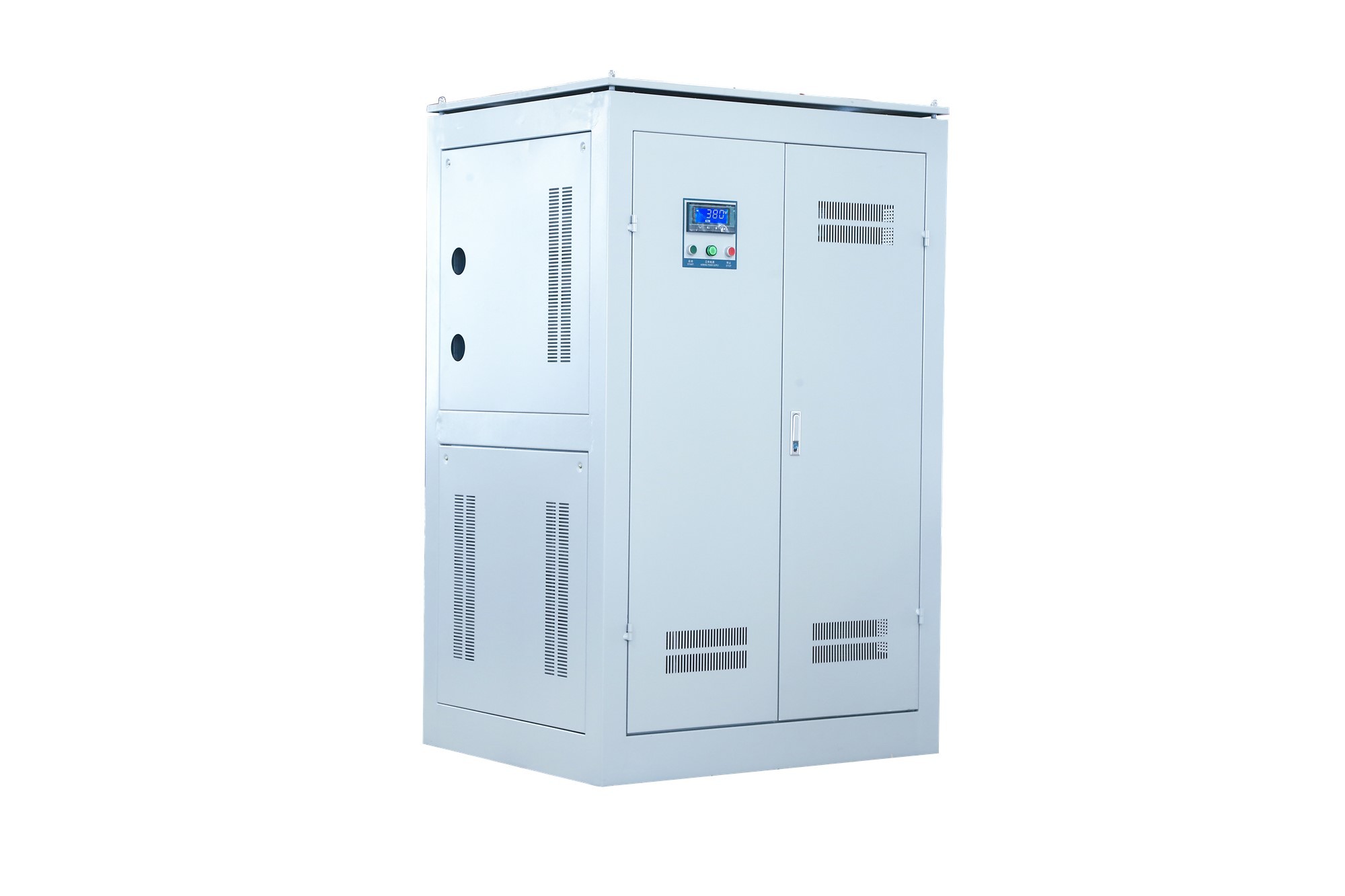

SBW 300KVA high-power compensation type power stabilizer

DBW(single-phase) and SBW(three-phase) series high-power compensation type power stabilizers are suitable for automatically maintaining the output voltage stability when the input voltage fluctuates or the load changes. Compared with other types of voltage regulators, this series embraces the advantages of large capacity, high efficiency, no waveform distortion, stable voltage regulation, etc. It is suitable for a wide range of loads and can withstand transient overload and longtime continuous work. This series offers manual and auto voltage regulation modes, regulated voltage and bypass modes.

Application

• postal and telecommunications
• shopping malls
• elevators
• hospitals
• schools
• printing
• textiles
• securities, etc

Product Detail

Models and parameters
Model	Power factor	Dimension(CM)	Weight (KG)
SBW50KVA	0.8	78x55x128	235
SBW80KVA		78x55x128	280
SBW100KVA		85x62x138	380
SBW150KVA		95x70x160	500
SBW200KVA		95x70x160	550
Technical parameters
Input voltage	Single phase: 17 4 V-264 V (phase voltage) Three-phase four-wire: 304 V-456V (line voltage)
Output voltage	Single phase: 220V± 3%; three phase: 380V±3%
Frequency	50/60HZ
Waveform distortion	No additional wave form distortion
Response time	≤1.5s
Time delay	5~8s
Efficiency	＞95%
Ambience temperature	-10℃~45℃
Insulation resistance	≥2Ω
Over-load capability	Double rated current for 1 minute
Display function
Other Protections	LCD digital display, automatic inspection function of overvoltage and current.
Note: Other configurations can be customized
