Brushless Voltage Stabilizer

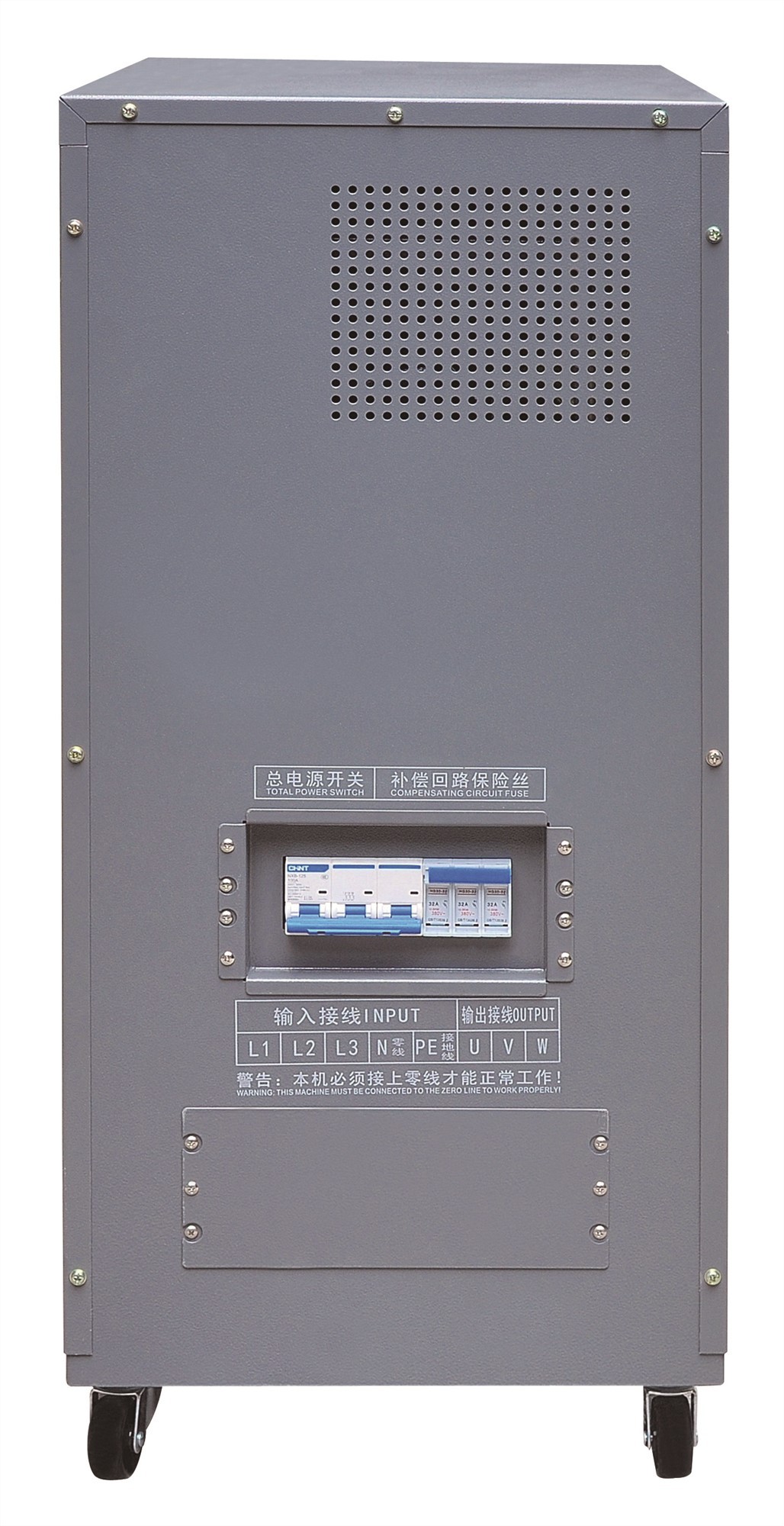

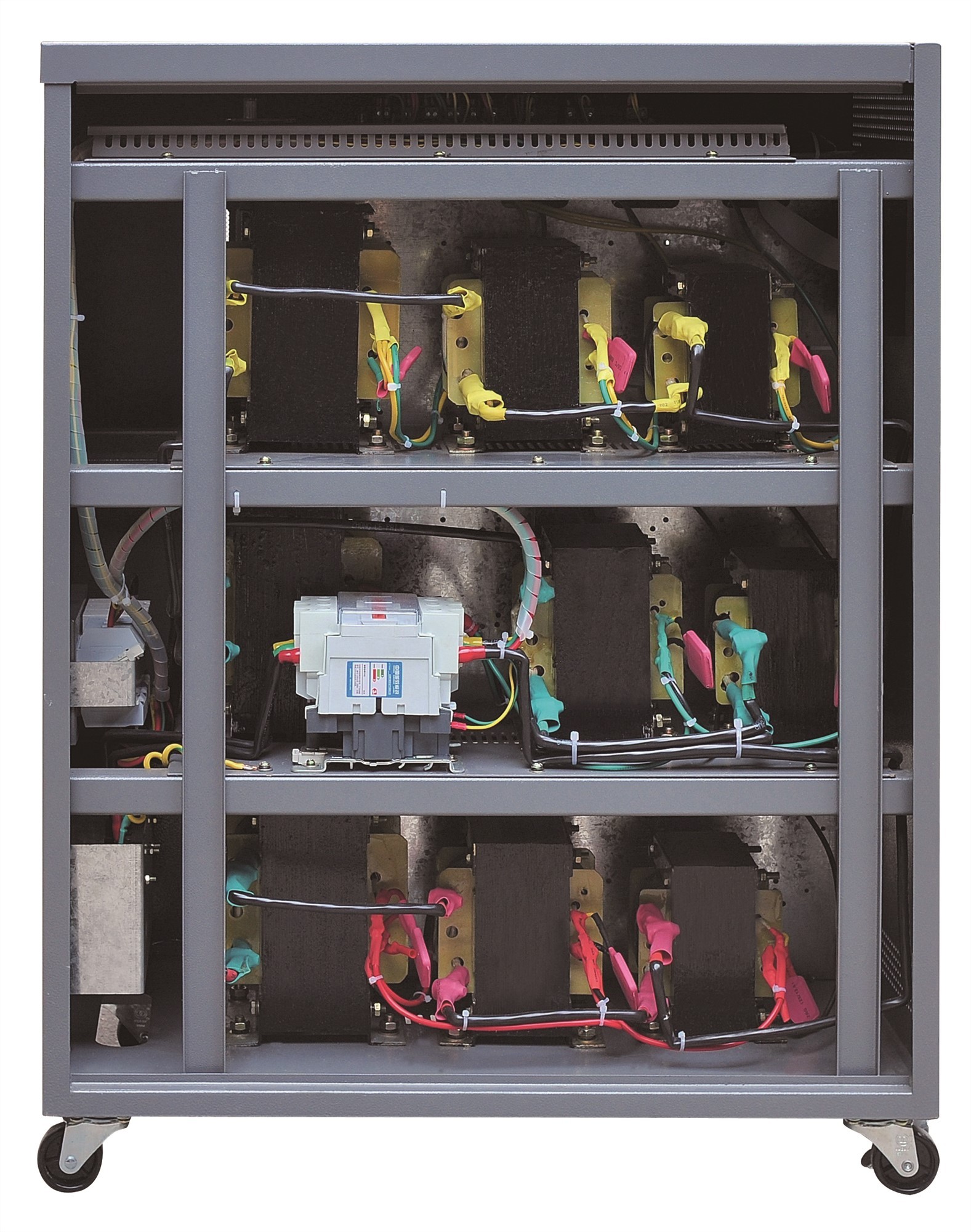

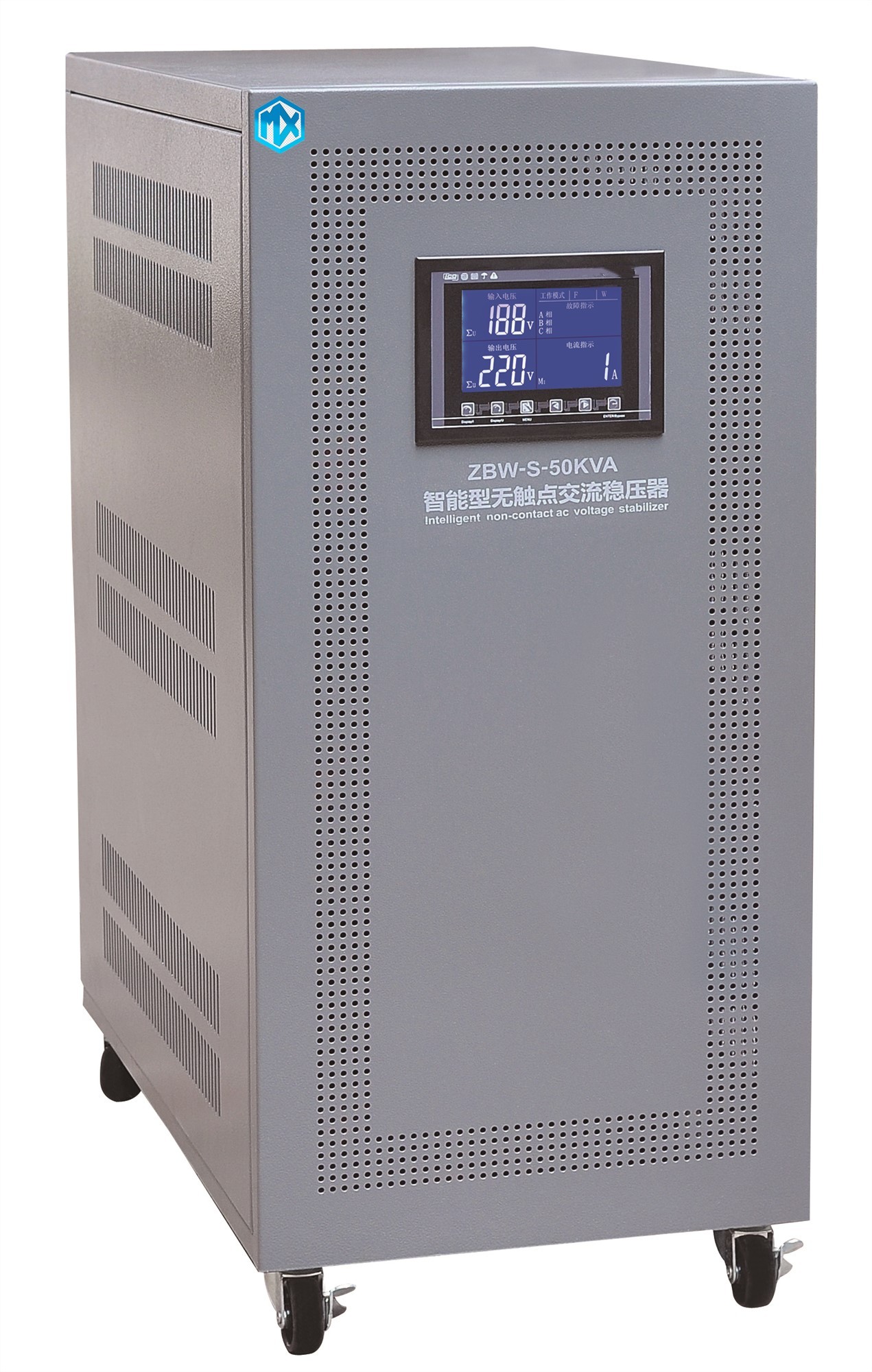

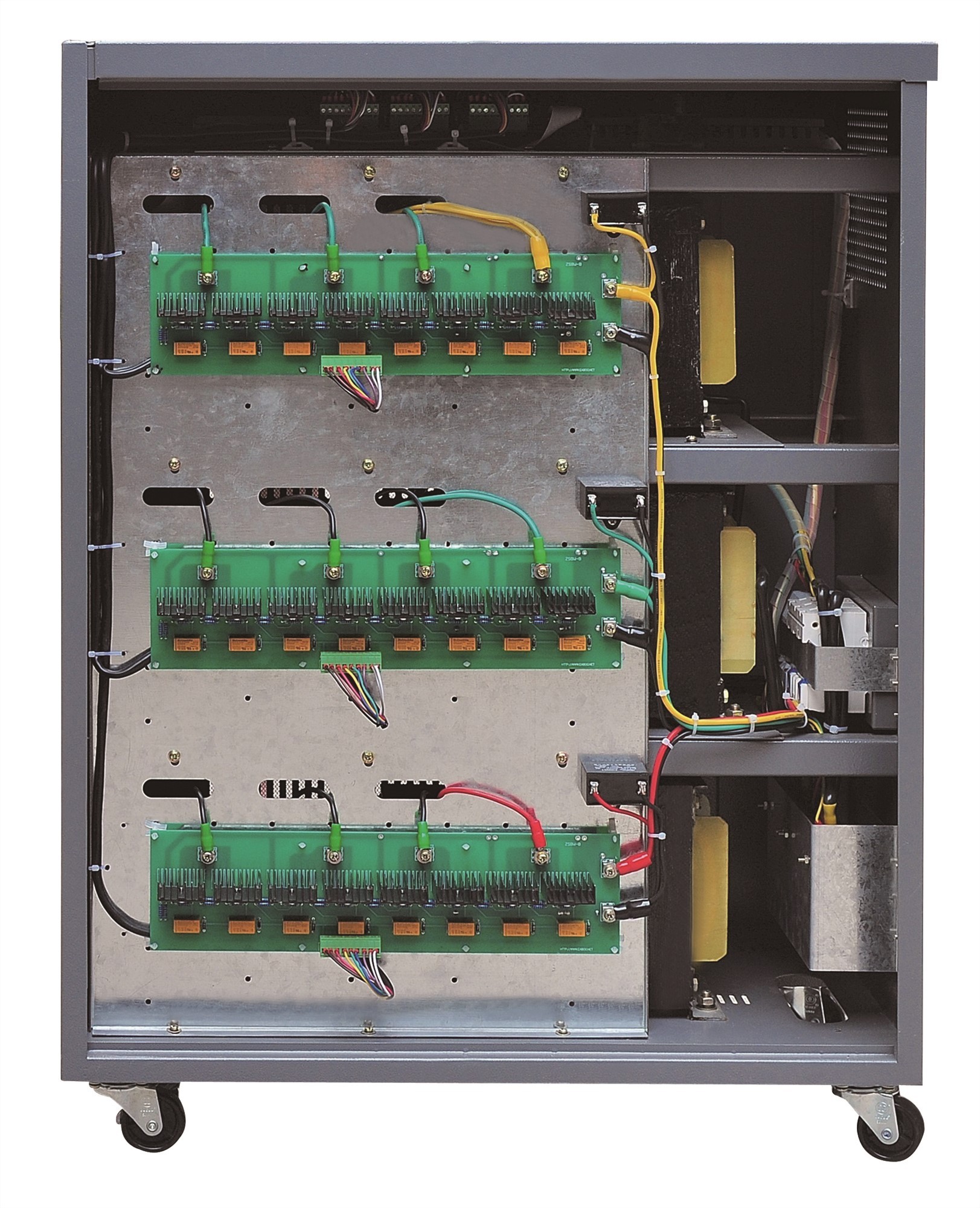

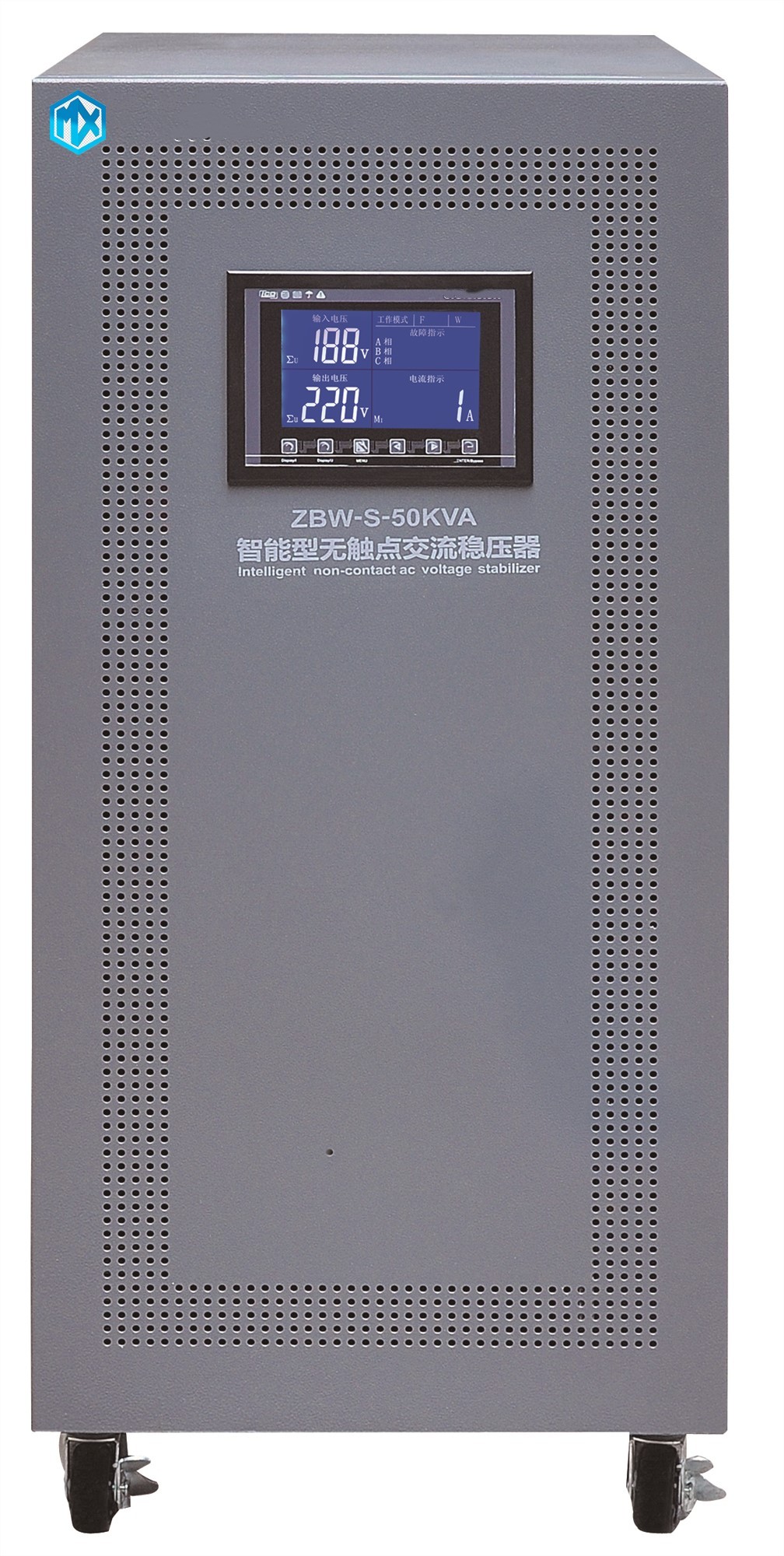

ZBW 50KVA Brushless Voltage Stabilizer

The Brushless Voltage Stabilizer is a cutting-edge solution designed for efficient and precise power regulation. Characterized by its fast correction speed, it swiftly adjusts voltage levels to ensure consistent power output. This stabilizer stands out for its high precision in maintaining stable voltage, making it ideal for environments where accuracy is crucial, such as in sensitive electronic equipment or precision manufacturing processes. The absence of brushes in its design not only reduces maintenance requirements but also enhances its operational lifespan and reliability.

Application
• Broadcast & Television system
• Microwave telecommunication unattended station
• Industrial control system
• Computer system
• Industrial equipment supporting
• Elevator supporting etc.

  • Product Detail
Models and dimensions
Model Rated Power Rated Current Dimension(CM)
(Single-phase) ZBW-D3 2.4KW 13.5A 22x50x37
(Single-phase) ZBW-D5 4KW 22.5A
(Single-phase) ZBW-D10 8KW 45A 26x60x40
(Single-phase) ZBW-D15 12KW 68A
(Single-phase) ZBW-D20 16KW 91A 35x60x64
(with locking wheels)
(Single-phase) ZBW-D30 24KW 137A
(Single-phase) ZBW-D50 40KW 228A
(Three-phase) ZBW-S30 24KW 46A 65x39x87
(4 universal wheels with brakes)
(Three-phase) ZBW-S50 40KW 76A
(Three-phase) ZBW-S80 64KW 121A 65x46x120
(Three-phase) ZBW-S100 80KW 152A
(Three-phase) ZBW-S120 96KW 182A
(Three-phase) ZBW-S150 120KW 228A 66x76x160
(Three-phase) ZBW-S180 144KW 273A
(Three-phase) ZBW-S200 160KW 300A
(Three-phase) ZBW-S225 180KW 342A 110x80x200
(Three-phase) ZBW-S250 200KW 380A
(Three-phase) ZBW-S320 256KW 486A
(Three-phase) ZBW-S400 320KW 608A
(Three-phase) ZBW-S500 400KW 760A
(Three-phase) ZBW-S600 480KW 912A
(Three-phase) ZBW-S800 640KW 1216A 150x90x210
(Three-phase) ZBW-S1000 800KW 1520A
(Three-phase) ZBW-S1200 960KW 1824A 180x100x210
(Three-phase) ZBW-S1400 1120KW 2127A 240x100x210
(Three-phase) ZBW-S1600 1280KW 2431A
Technical parameters
Input voltage range Phase voltage 176V-264V, line voltage:304V-456V
Output voltage range Phase voltage:220V±1~5%, line voltage:380±1~5%
Efficiency ≥98%
Response time 0.1s-0.3s (optional)
Frequency 50-60 Hz
Ambience temperature -10~45
Insulation resistance ≥5Ω
Instant overload capacity 1.5-2 times of the rated current
Other Protections Over-load, over-current, over-voltage, under-voltage,
and short-circuit protections
Note: Other configurations can be customized
