JSW Power Conditioner

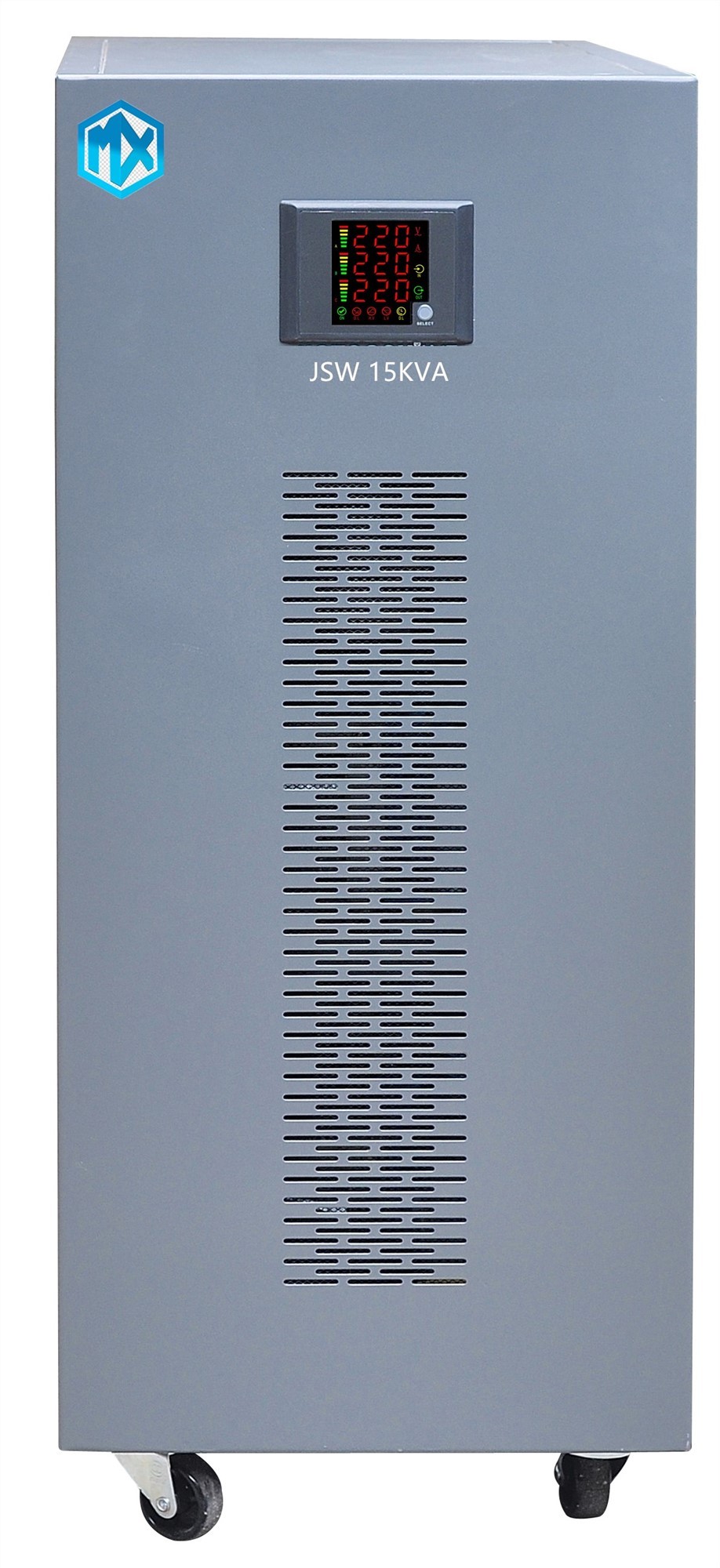

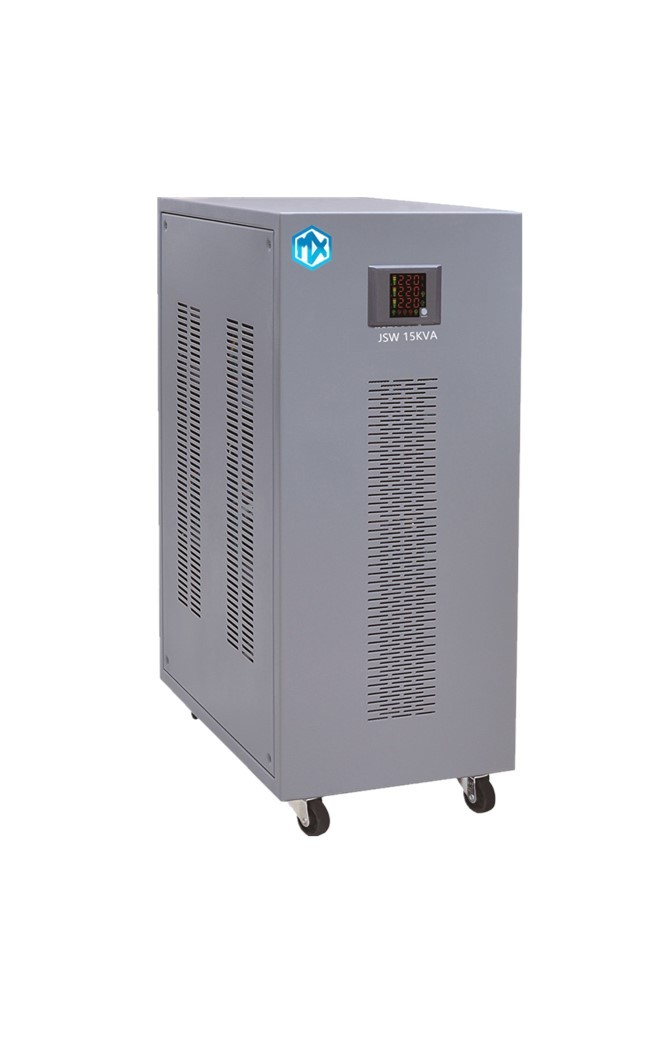

JSW 15KVA Power Conditioner

The JSW Series is a robust three-phase voltage stabilizer, mirroring the excellent features of the JJW series. Designed to manage and stabilize electrical currents across three phases, it ensures a reliable and consistent power supply. This model is particularly effective in environments where stable and precise voltage is crucial, such as in industrial settings or with sensitive electronic equipment. Its advanced design allows for fast voltage correction and high precision, safeguarding against fluctuations and surges. The JSW series is an ideal solution for those who need a dependable, high-performance power conditioning system for complex, multi-phase electrical setups.

Application

• Computer network project
• electronic instruments
• armarium
• research institute
• measurement and test device
• factory test board, etc.
  • Product Detail
Models and dimensions
Model Rated Power Dimension(CM) Weight (KG)
JSW- 3KVA 2.4KW 52x33x77 55
JSW- 6KVA 4.8KW 52x33x77 61
JSW- 9KVA 7.2KW 52x33x77 70
JSW- 15KVA 12KW 57x35x86 86
JSW- 20KVA 16KW 57x35x86 120
JSW- 30KVA 24KW 70x42x110 136
JSW- 50KVA 40KW 75x48x116 202
JSW- 60KVA 48KW 75x48x116 230
JSW- 100KVA 80KW 90x60x131 330
Technical parameters
Input voltage range 310V-450V±3%
Suitable input range 280V-480V
Frequency 50/60HZ
Output voltage Phase voltage:220V±0.15%, Line voltage 380V±1%
Power source voltage effect ≤+1%
Waveform distortion No additional wave form distortion
Response time 30-60ms
Ambience temperature -10~45
Insulation resistance ≥5Ω
Efficiency ≥92% (Full load)
Peak absorpion Input 3000v/3us; peak output ≤30v
Over-voltage alarm protection phase voltage 246V±4VLine voltage 425V±7V
Other Protections Over-load, over-current, under-voltage,
and short-circuit protections
Note: Other configurations can be customized
